PRE-ORDER: AHI All-Glass Cockpit Display V2 – Quad-Screen w/ LoRa MAVLink Avionics for RC Planes

IMPORTANT ORDER INFO:
Select Your Configuration at Checkout
This listing includes multiple kit configurations. Be sure to select the correct option from the dropdown menu before checking out.

LoRa Frequency 915
1.44 2-Screen Kit + LoRa
1.44 3-Screen Kit + LoRa
1.44 4-Screen Kit + LoRa
1.14 2-Screen Kit + LoRa
1.14 3-Screen Kit + LoRa
1.14 4-Screen Kit + LoRa
LoRa Frequency 867
1.44 2-Screen Kit + LoRa
1.44 3-Screen Kit + LoRa
1.44 4-Screen Kit + LoRa
1.14 2-Screen Kit + LoRa
1.14 3-Screen Kit + LoRa
1.14 4-Screen Kit + LoRa

1.44 2-Screen Kit
1.44 3-Screen Kit
1.44 4-Screen Kit
1.14 2-Screen Kit
1.14 3-Screen Kit
1.14 4-Screen Kit

LoRa Frequencies:
915 MHz (USA, Canada, Mexico, Australia, New Zealand, most of South America)
867/868 MHz (EU, UK, Russia, India, Middle East)
Other regions (China, Japan, Korea, etc.) may use different frequencies. Please verify your country's local LoRa regulations and frequency bands.

Each option is priced accordingly and reflects the exact components you will receive. If you're unsure, contact us directly for help choosing the right version.

Limit 3
2 units per transaction to keep shipping costs manageable. Orders exceeding this limit will be refunded entirely. For larger orders, please email us.

International customers: You are responsible for all import duties, taxes, and customs fees billed by your local authorities. International shipping includes sales taxes only. Verify local customs regulations.

Assembly & Testing
Allow 1–3 days for assembly and shipping updates once your unit enters the build queue. Each unit is built and rigorously tested in the USA before shipment.
Product appearance may vary slightly, functionality remains identical across all units.

Units are expected to begin shipping within the next 3 weeks. You’ll receive tracking as soon as your order ships.

All sales are final.

What's New in V2:
Quad Display Support: Connect up to four displays simultaneously.

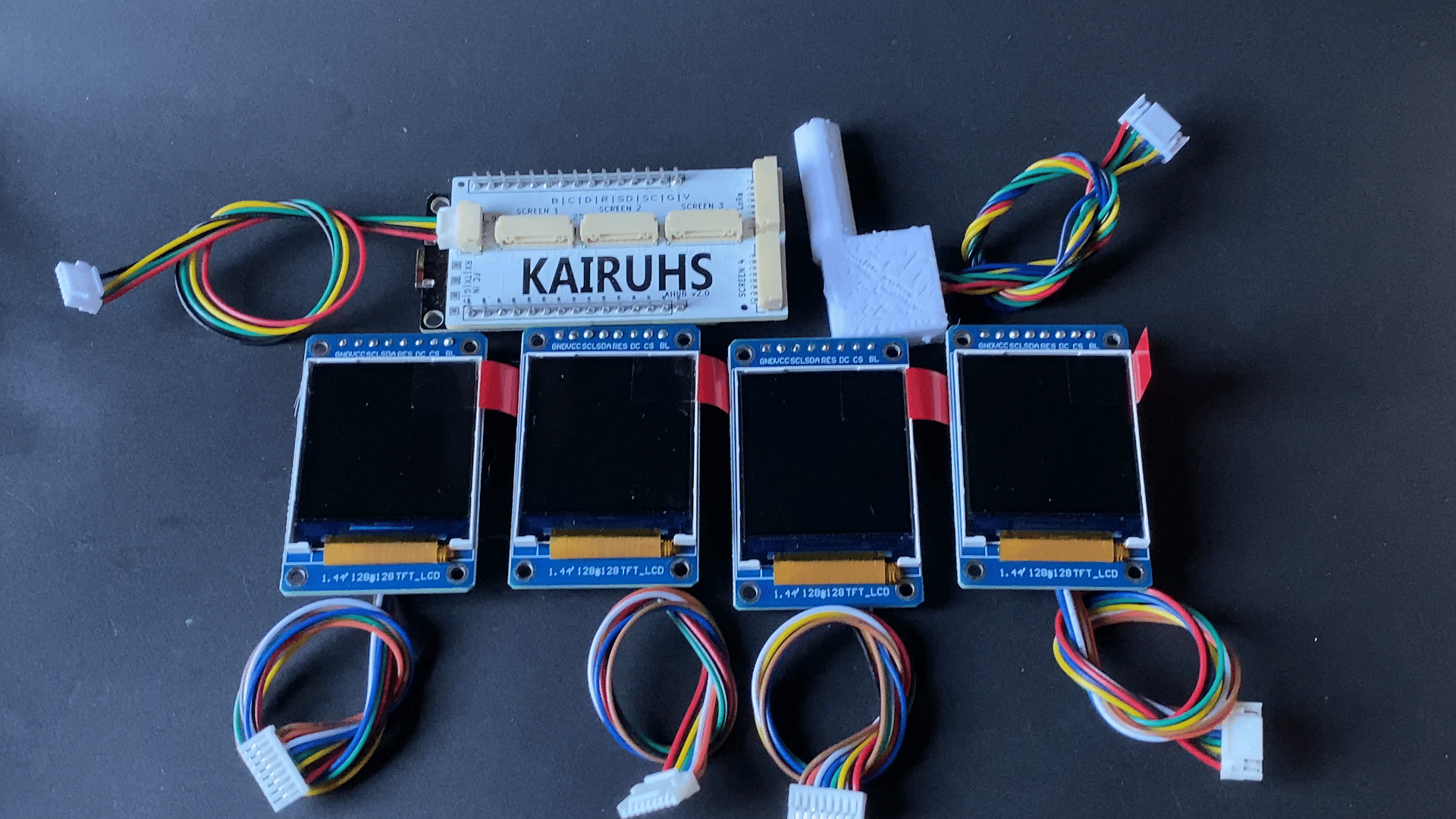

Screen Sizes & Types: Choose between brighter 5V-driven 1.14″ or 1.44″ TFT screens.

LoRa Integration: Real-time radar positioning and telemetry exchange among up to 16 pilots. (beta)

Dynamic HUD: Invertible HUD mode (ideal for reflection on cockpit glass), vertical offset adjustable for precise alignment (1.14" displays).

Ace Combat-Inspired Radar: Abstract radar visualization with fully customizable simulated air traffic, pursuers, detailed target info, and real-time tracking of other Kairuhs kit pilots.

Individual Screen Rotation: Each screen's orientation independently adjustable (0°, 90°, 180°, 270°, horizontal/vertical flips).

Fuel or Voltage Gauge: Selectable gauge styles on MFD.

Compact or Full Compass: Two selectable compass layouts on PFD.

Simplified Setup: No more physical buttons or legacy menus; configure entirely via WiFi AP mode.

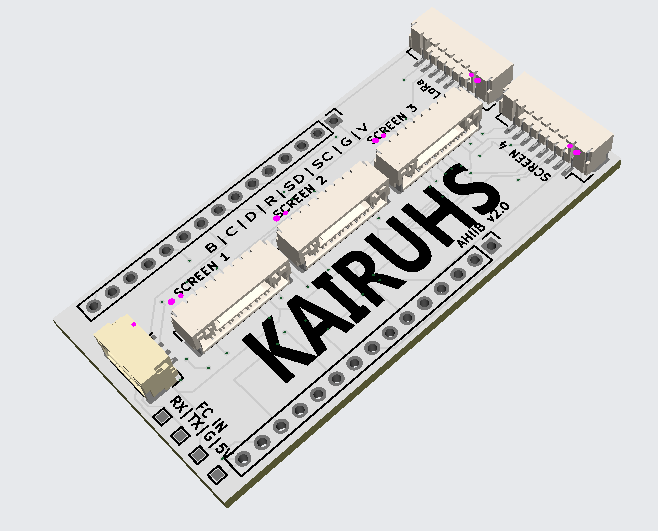

Horizontal Connectors: Ports now horizontally aligned for easier and more compact installation.

Slim Display Modules: Display header pins pre-removed for compactness and easier cockpit integration.

Enhanced MFD Scale: Additional RSSI indicator (1.14" displays).

LoRa Radar System
Instant identification of nearby pilots or sims.
Shows real-time pilot ID, vehicle ID, heading, altitude, distance.
Team-based color coding: Friend (cyan) or Foe (red).
Comprehensive customization: Target labels (Pilot/Vehicle ID, Distance, Altitude), visibility toggles, simulation options, spawn rates, and pursuit settings.

Technical Specifications:
Controller Dimensions & Weight
Weight: g
Size: × × mm (W × L × H)
Display Dimensions & Weight
1.44″ Display: ~19.9g | 29.4 × 45.9 × 12.2 mm
1.14″ Display: ~g | × × mm

Connectivity
Protocol: MAVLink via UART (115200 baud)
Connections: 5V, Ground, RX, TX

Telemetry & Displays:
Primary Flight Display (PFD)
Speed tape (color-coded zones + 3s trend vector)
Attitude indicator (roll & pitch)
Altitude tape
Heading & compass (compact/full layout)
Distance-to-home & Return-to-home arrow
GPS lock indicator (green at ≥7 satellites)
Variometer (climb/descent rate)

Multifunction Display (MFD)
Power usage (amps & watts)
Throttle position
Flight mode: MAN, ACR, HOR
Voltage/Fuel gauge
RSSI (1.14" displays)
Battery & cell voltages
Flaps & landing gear status

HUD Display
Pitch, roll, heading, altitude, speed
Vertically adjustable for accurate glass reflections
Inversion capability for HUD optics

Radar Display (Ace Combat style)
Circular radar layout with adjustable range
Target dots: Friend (cyan), Foe (red)
Customizable target labels: Pilot/Vehicle ID, Altitude, Distance, Heading
Real-time LoRa status, GPS count, ownship details
Supports simulated dogfights and formation flying

Easy Installation & Setup:
Connects to any UART-capable flight controller (5V, G, RX, TX).
INAV compatible (7.1.2 recommended): Set MAVLink (115200 baud) in Ports tab.
LoRa module auto-detection (cyan indicator = active).

AP Mode (Wireless Config):
Hold BOOT after power-up. Follow onscreen instructions.
Connect device to KAIRUHS_Config (PW: kairuhs123).
Configure at http://192.168.4.1.

Complete Web Configuration:
Warnings: Stall, overspeed, voltage, altitude ceiling/floor, overcurrent.
Units & Gauges: Speed (MPH, KPH, Knots), altitude/distance (Feet, Meters, Yards), Fuel vs Voltage gauge.
Radar & Sims: Max radar range, spawn frequency, pursuit aggressiveness, target visibility, team settings.
Screen Roles & Rotation: Individually set each display’s function and orientation (PFD, MFD, HUD, Radar).
RC Channel Map & Inversion: Assign channels and invert signals as needed.

Special Notes:
Mixing 1.14″ & 1.44″ displays may cause layout impacts.
Verify correct LoRa frequency based on your region.

Demo, Tutorials & Updates:
For demos, firmware updates, and detailed tutorials, subscribe to our YouTube channel:
KairuhsConsole
For support and feedback, contact:
Email: [email protected]

Why Kairuhs AHI V2?
Complete Flight Telemetry in an RC-friendly package.
Real-time Radar Interaction for engaging formation flying or thrilling simulated dogfights.
Advanced Customization made simple with WiFi-based settings.
Designed and rigorously tested by RC pilots in the USA.

Thanks for choosing Kairuhs. Stay sharp, fly safe, and push the limits! 🛩️
